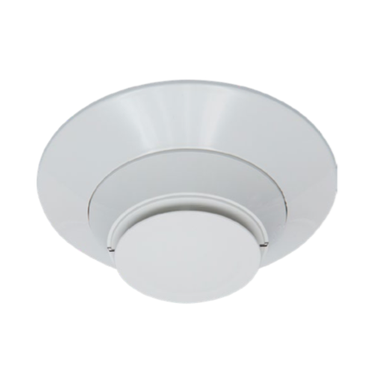

Intelligent Plug-in Photoelectric Smoke Detectors

Honeywell’s IDP-PHOTO-W Series intelligent plug-in smoke detectors are
designed for both performance and aesthetics. A new modern, sleek,
contemporary design and enhanced optical sensing chamber is
engineered to sense smoke produced by a wide range of combustion
sources in accordance with more stringent code standards.
The IDP-PHOTO-W Series detector sensitivity can be programmed in the
control panel software. Sensitivity is continuously monitored and reported
to the panel. Point ID capability allows each detector’s address to be set
with rotary, decimal address switches, providing exact detector location for
selective maintenance when chamber contamination reaches an
unacceptable level. Dual electronic thermistors add 135°F (57°C) fixed temperature thermal sensing on the IDP-PHOTO-T. The IDP-PHOTO-R is a remote test capable detector for use with DNR Series duct detector housings.

Features:

• New modern profile for improved aesthetics
• Stable communication technique with noise immunity
• Low standby current
• Two-wire SLC connection
• Optional remote, single-gang LED accessory
• Dual LED design provides 360° viewing angle
• Remote test feature from the panel
• Built-in functional test switch activated by external magnet
• Built-in tamper-resistant feature
• Sealed against back pressure
• Expanded color options
• SEMS screws for wiring of the separate base
• Optional relay, isolator, and sounder bases
• Plugs into separate base for ease of installation and maintenance
